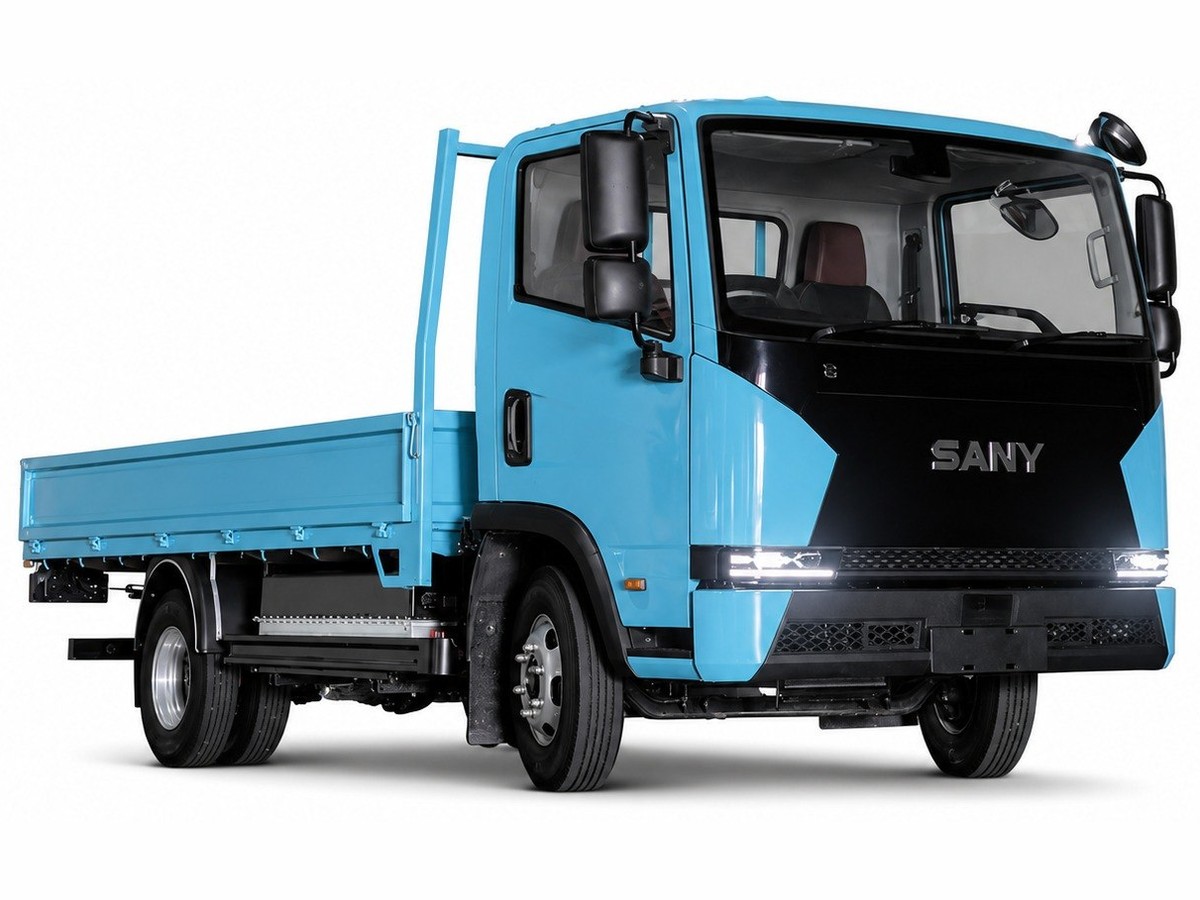

Sany FR-601
5-tonne electric truck — Gotion 84.48 kWh LFP, 300 km unladen range, 2,660 kg payload and a 15 ft body.
Complete data sheet.
Click any group to expand. All figures from manufacturer's specification; subject to homologation for Singapore LTA Vehicle Type Approval.
| Range (unladen) | 300 km |
|---|---|
| Range (full load) | 290 km |
| Rated capacity | 84.48 kWh / 563 V |
| Battery manufacturer | Gotion |
| Battery chemistry | Lithium iron phosphate (LFP) |
| Power (nominal / peak) | 60 / 115 kW (80 / 154 hp) |
|---|---|
| Torque (nominal / peak) | 135 / 350 Nm |
| Motor controller | 3-in-1 |
| Top speed | 90 km/h (60 km/h w/ limiter) |
| Overall length | 5,995 mm |
|---|---|
| Wheelbase | 3,360 mm |
| Overall width | 2,185 mm |
| Cabin height | 2,360 mm |
| 1st axle load | 1,240 kg |
| 2nd axle load | 1,100 kg |
| Unladen total | 2,340 kg |
| Gross vehicle weight | 5,000 kg |
| Payload | 2,660 kg |
| Turning circle (kerb) | 12,000 mm |
| Front axle rating | 2,385 kg |
|---|---|
| Rear axle rating | 3,615 kg |
| Drive axle | Electric drive axle |
| Suspension | Parabolic spring, front and rear |
| Brakes | Front and rear drum, electronic parking, ABS |
| Tyres | 2×7.00R16 front / 4×7.00R16 rear |
| Steering | Recirculating ball, mechanical adjustment |
| Optional bodies | Tailgate, full/half canopy, full cage, enclosed box, platform |
| Cargo body styles | Tailgate, full cage, full canopy, half canopy, enclosed box or platform — specified at order |
|---|---|
| Cabin height | 2,360 mm |
| Chassis height | 719 mm |
| Battery warranty | 5 years (8 years optional) |
| Motor & controller warranty | 3 years |
| Other components | 1 year |
Cover that matches the duty cycle.
5 years (8 optional)
Battery warranty.
3 years
Motor and controller warranty.
1 year
Other components.
Sany FR-601 — frequently asked questions.
What is the driving range of the Sany FR-601?
The Sany FR-601 has a stated driving range of 300 km (range & battery) and 290 km (range & battery). Real-world range varies with load, route profile, ambient temperature and driving style.
What is the payload capacity of the Sany FR-601?
The Sany FR-601 has a gross vehicle weight of 5,000 kg and a payload of 2,660 kg.
What warranty is offered on the Sany FR-601?
Manufacturer warranty on the Sany FR-601: Battery — 5 years (8 optional); Motor & controller — 3 years; Others — 1 year. Terms are set by the manufacturer and should be confirmed in writing before purchase.
Is the Sany FR-601 available in Singapore?
The Sany FR-601 is listed on EVhubs as available to Singapore fleet operators. EVhubs is a supplier-neutral listing platform — we publish specifications, not prices. Contact us for a quotation sized to your route and duty cycle.
