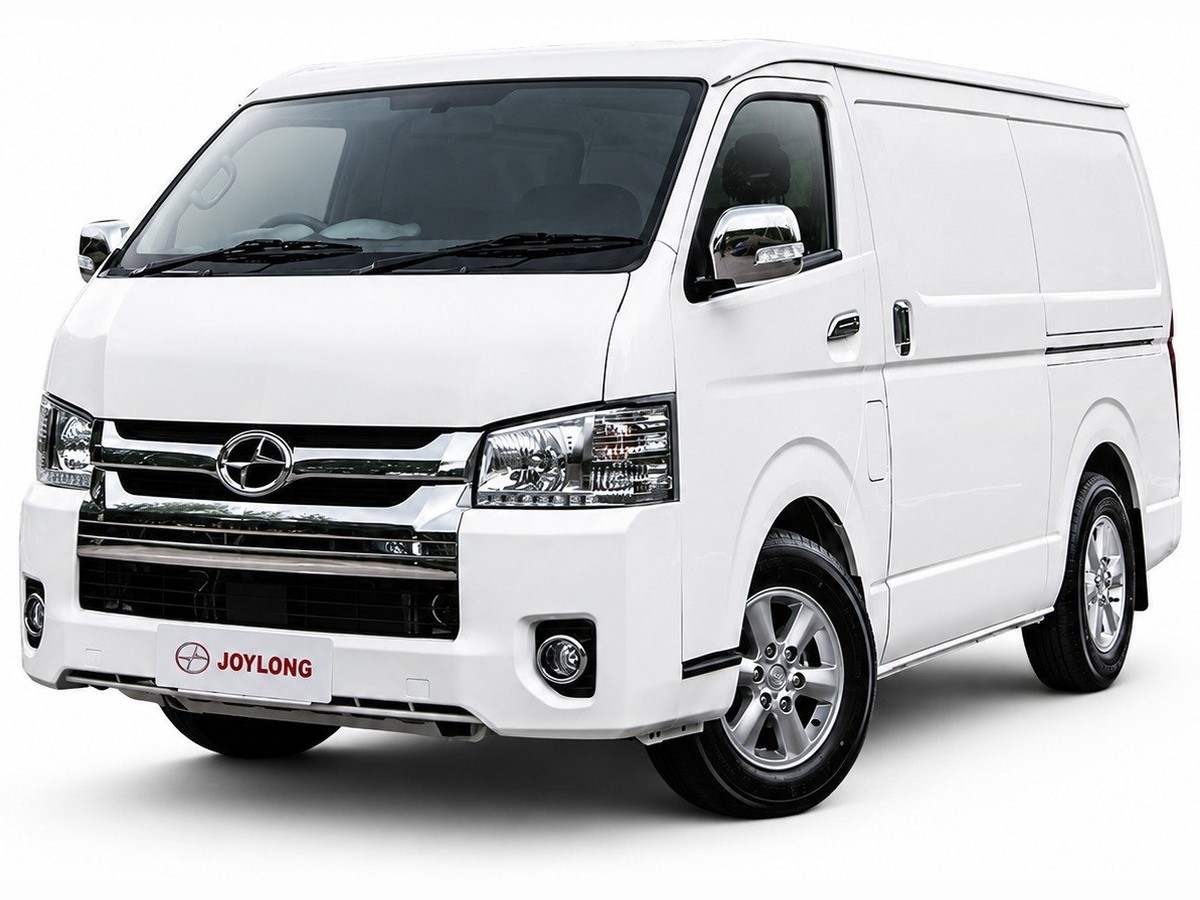

Joylong EW4
Cargo or 13-seat minibus variant — 365 km WLTP range, 86.1 kWh battery, 100 kW.
Complete data sheet.
Click any group to expand. All figures from manufacturer's specification; subject to homologation for Singapore LTA Vehicle Type Approval.
| Range (WLTP combined) | 365 km |
|---|---|
| Battery capacity | 86.1 kWh |
| Battery cooling | Liquid cooling |
| Charging time (AC/DC) | 8 hours (20–80%) |
| Max power | 100 kW |
|---|---|
| Max torque | 320 Nm |
| Max speed | 110 km/h |
| Configuration | Cargo (3 seat) or minibus (12+1 seat) |
|---|---|
| Cargo volume | 6.6 m³ |
| Payload (cargo) | 1,220 kg |
| Cargo L x W x H | 2,900 x 1,730 x 1,330 mm |
| Overall L x W x H | 4,840 x 1,880 x 1,980 mm |
| Wheelbase | 2,570 mm |
| Unladen | 2,280 kg (cargo) / 2,400 kg (minibus) |
| GVW | 3,500 kg |
| Wheels | Alloy 215/65R16C |
|---|---|
| Brakes | ABS + EBD |
| Stability | ESC + EPB |
| Airbags | Front dual |
| Camera | 360 surround view |
| Regen | Adjustable |
| TPMS | Yes |
| Steering | Electric power steering |
Cover that matches the duty cycle.
8 years
Battery warranty.
5 years
Motor warranty.
Joylong EW4 — frequently asked questions.
What is the driving range of the Joylong EW4?
The Joylong EW4 has a stated driving range of 365 km. Real-world range varies with load, route profile, ambient temperature and driving style.
What battery does the Joylong EW4 have?
The Joylong EW4 uses a 86.1 kWh battery pack.
How long does the Joylong EW4 take to charge?
Manufacturer-stated charging time for the Joylong EW4 is 8 hours (20–80%). Actual time depends on charger output, battery state of charge and ambient conditions.
What is the payload capacity of the Joylong EW4?
The Joylong EW4 has a gross vehicle weight of 3,500 kg and a payload of 1,220 kg.
What warranty is offered on the Joylong EW4?
Manufacturer warranty on the Joylong EW4: Battery — 8 years; Motor — 5 years. Terms are set by the manufacturer and should be confirmed in writing before purchase.
Is the Joylong EW4 available in Singapore?
The Joylong EW4 is listed on EVhubs as available to Singapore fleet operators. EVhubs is a supplier-neutral listing platform — we publish specifications, not prices. Contact us for a quotation sized to your route and duty cycle.
