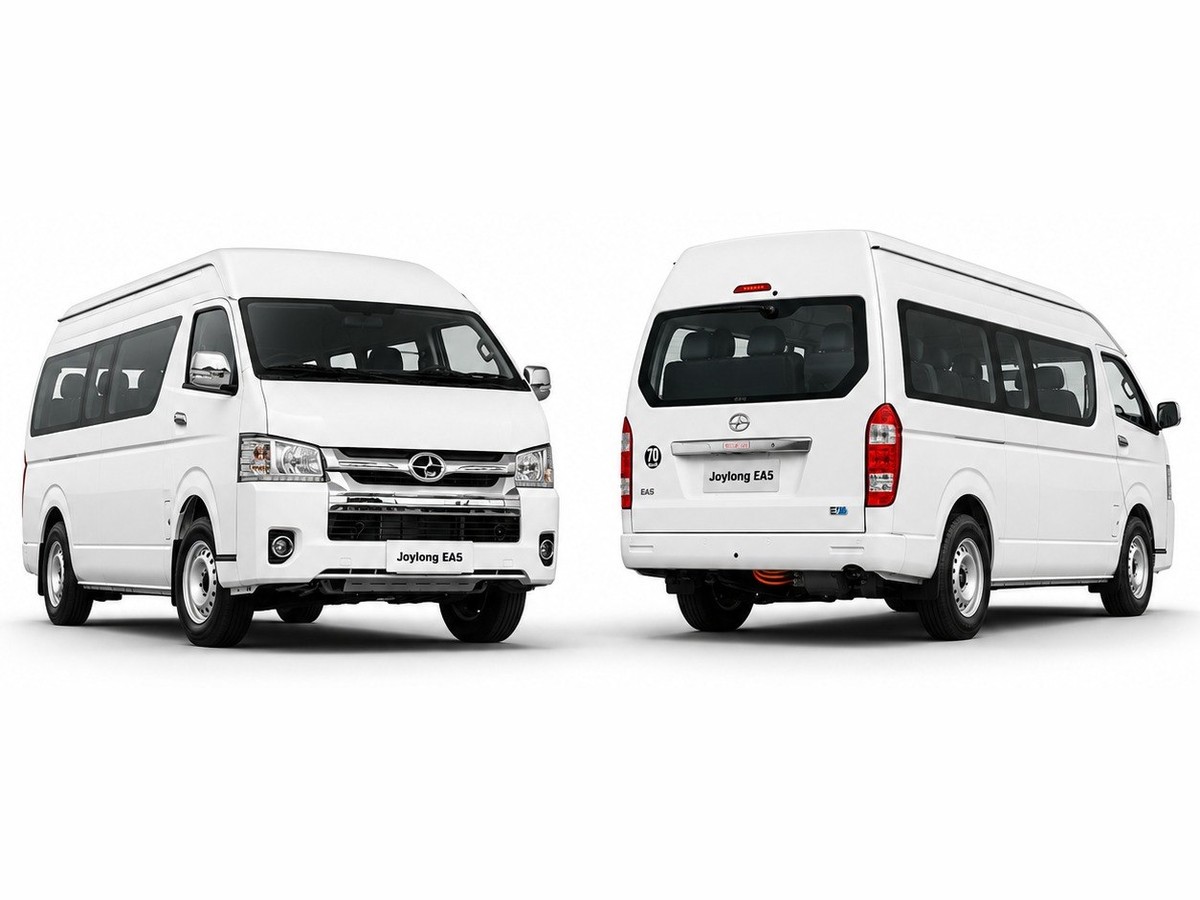

Joylong EA5 III
13+1 seater electric passenger van — 335 km WLTP range, 86.1 kWh battery, 120 kW / 382 Nm.
Complete data sheet.
Click any group to expand. All figures from manufacturer's specification; subject to homologation for Singapore LTA Vehicle Type Approval.
| Range (WLTP) | 335 km |
|---|---|
| Battery capacity | 86.1 kWh |
| Battery cooling | Liquid cooling |
| DC charging 20–80% | 1 hour |
| AC charging 20–80% | 8 hours |
| Max power | 120 kW |
|---|---|
| Max torque | 382 Nm |
| Max speed | 130 km/h |
| Seating | 13 + 1 |
|---|---|
| Overall L x W x H | 5,380 x 1,880 x 2,285 mm |
| Wheelbase | 3,110 mm |
| Unladen weight | 2,500 kg |
| Gross vehicle weight | 3,500 kg |
| Payload (GVW less unladen) | 1,000 kg |
| Wheels | Alloy 215/75R16C |
|---|---|
| Steering | Electronic power steering |
| Brakes | ABS + EBD |
| Stability | ESC + EPB |
| Camera | 360 surround view |
| Airbags | Front dual |
| Hill control | Yes |
| TPMS | Yes |
Cover that matches the duty cycle.
8 years
Battery warranty.
5 years
Motor warranty.
Joylong EA5 III — frequently asked questions.
What is the driving range of the Joylong EA5 III?
The Joylong EA5 III has a stated driving range of 335 km. Real-world range varies with load, route profile, ambient temperature and driving style.
What battery does the Joylong EA5 III have?
The Joylong EA5 III uses a 86.1 kWh battery pack.
How long does the Joylong EA5 III take to charge?
Manufacturer-stated charging time for the Joylong EA5 III is 1 hour (range & battery) and 8 hours (range & battery). Actual time depends on charger output, battery state of charge and ambient conditions.
What is the payload capacity of the Joylong EA5 III?
The Joylong EA5 III has a gross vehicle weight of 3,500 kg (body & capacity) and 1,000 kg (body & capacity) and a payload of 1,000 kg.
What warranty is offered on the Joylong EA5 III?
Manufacturer warranty on the Joylong EA5 III: Battery — 8 years; Motor — 5 years. Terms are set by the manufacturer and should be confirmed in writing before purchase.
Is the Joylong EA5 III available in Singapore?
The Joylong EA5 III is listed on EVhubs as available to Singapore fleet operators. EVhubs is a supplier-neutral listing platform — we publish specifications, not prices. Contact us for a quotation sized to your route and duty cycle.
