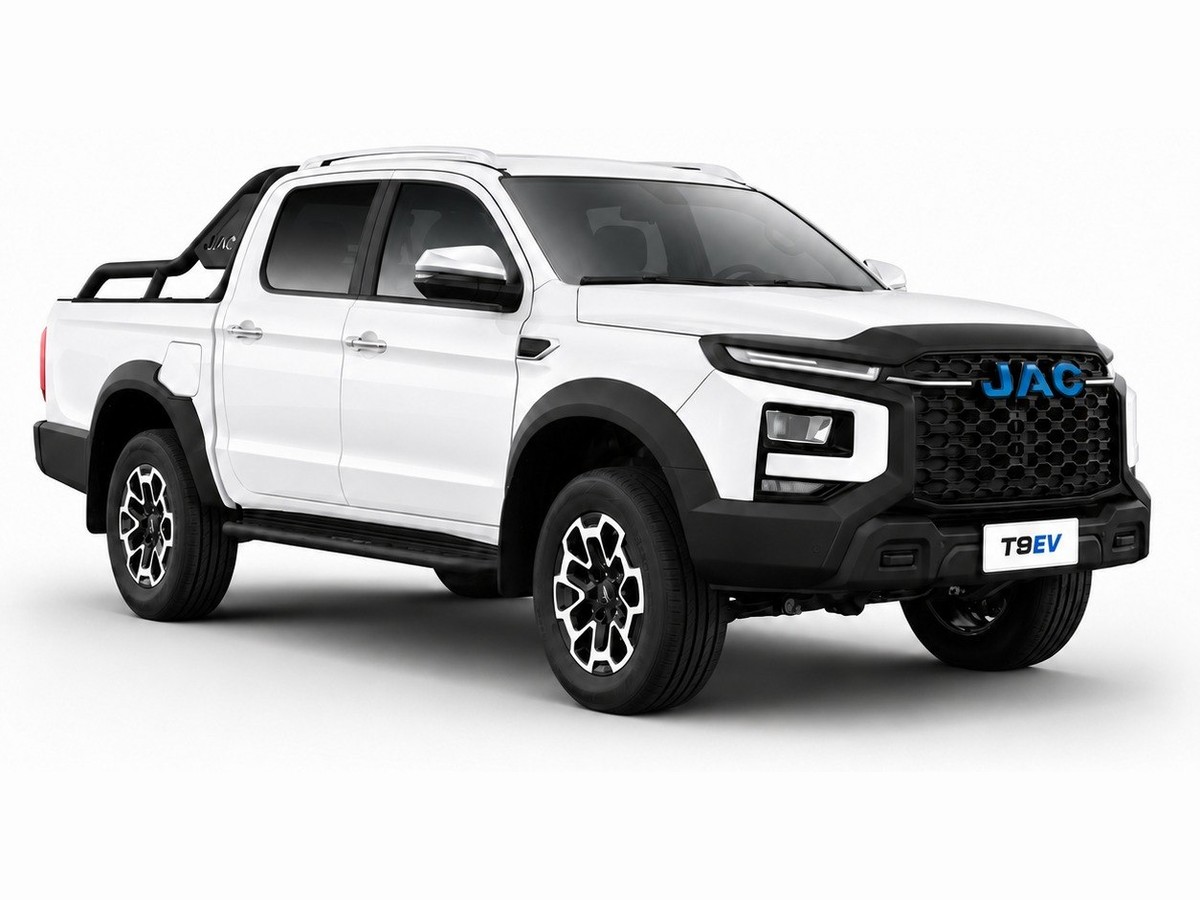

JAC T9EV
Double-cab electric pickup — 340 km WLTP range, 88.02 kWh battery, 3.26 t GVW.
Complete data sheet.
Click any group to expand. All figures from manufacturer's specification; subject to homologation for Singapore LTA Vehicle Type Approval.
| Range (WLTP) | 340 km |
|---|---|
| Battery type | Lithium iron phosphate |
| Battery capacity | 268 Ah |
| Battery total capacity | 88.02 kWh |
| Charging standard | CCS Combo 2 |
| Configuration | Dual motor, all-wheel drive |
|---|---|
| Front motor (model TZ180XS137) | 26 / 70 kW, 64 / 176 Nm |
| Rear motor (model TZ200XSY) | 70 / 150 kW, 150 / 340 Nm |
| Max speed | 140 km/h |
| Gradeability | 30% |
| Overall L x W x H | 5,330 x 1,590 x 1,920 mm |
|---|---|
| Wheelbase | 3,110 mm |
| Overall width (body) | 1,965 mm |
| Gross vehicle weight | 3,260 kg |
| Tyres | 265/60 R18 |
| Brakes | Front disc / rear disc, hydraulic |
|---|---|
| Airbags | 7 |
| Systems | ABS, EBD, ESC, hill-start hold, traction control, EPB |
| Energy recovery | Braking energy recovery |
| Pedestrian alert | Yes |
Cover that matches the duty cycle.
8 years / 400,000 km
Battery warranty.
5 years / 200,000 km
Motor warranty.
5 years / 200,000 km
Vehicle warranty.
JAC T9EV — frequently asked questions.
What is the driving range of the JAC T9EV?
The JAC T9EV has a stated driving range of 340 km. Real-world range varies with load, route profile, ambient temperature and driving style.
What battery does the JAC T9EV have?
The JAC T9EV uses a 268 Ah battery pack (Lithium iron phosphate).
What is the payload capacity of the JAC T9EV?
The JAC T9EV has a gross vehicle weight of 3,260 kg.
What warranty is offered on the JAC T9EV?
Manufacturer warranty on the JAC T9EV: Battery — 8 years / 400,000 km; Motor — 5 years / 200,000 km; Vehicle — 5 years / 200,000 km. Terms are set by the manufacturer and should be confirmed in writing before purchase.
Is the JAC T9EV available in Singapore?
The JAC T9EV is listed on EVhubs as available to Singapore fleet operators. EVhubs is a supplier-neutral listing platform — we publish specifications, not prices. Contact us for a quotation sized to your route and duty cycle.
