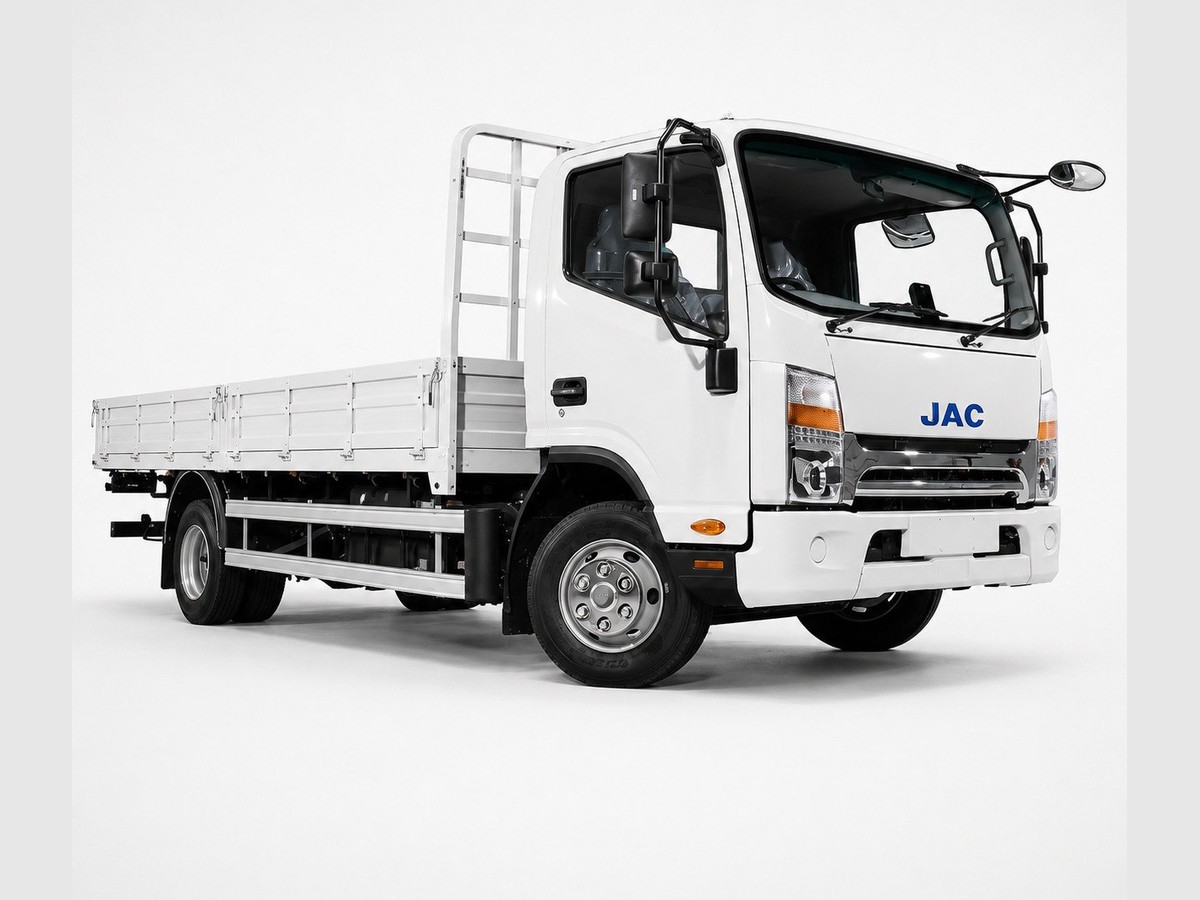

JAC N75EV / N90EV
Two light-duty electric trucks on one platform — N75EV at 7.49 t and N90EV at 9 t GVW. CATL 106.95 kWh LFP, from 230 km at full load, DC fast charge 20–80% in 45 minutes.
Complete data sheet.
Click any group to expand. All figures from manufacturer's specification; subject to homologation for Singapore LTA Vehicle Type Approval.
| Range | From 230 km (N75EV at full load) |
|---|---|
| Battery brand | CATL |
| Battery type | Lithium iron phosphate |
| Total capacity | 106.95 kWh |
| Charging standard | CCS2 |
| DC fast charging 20–80% | 45 minutes |
| Gross vehicle weight | 7,490 kg |
|---|---|
| Motor model | PTL368N1222K130M01 |
| Rated / peak power | 65 / 130 kW |
| Rated / peak torque | 415 / 1,200 Nm |
| Transmission | Direct drive (none fitted) |
| Wheelbase | 3,365 mm or 3,845 mm |
| Overall length | 5,995 mm or 7,025 mm |
| Deck length | 4,300 mm (~14 ft) or 5,340 mm (~17.5 ft) |
| Rear overhang | 1,520 mm or 2,070 mm |
| Departure angle | 10° or 11° |
| Gross vehicle weight | 9,000 kg |
|---|---|
| Motor model | TZ365XSC08 |
| Rated / peak power | 90 / 171 kW |
| Rated / peak torque | 550 / 1,050 Nm |
| Transmission | 2E110 (FAST), ratio 2.770 / 1.000 |
| Wheelbase | 3,845 mm or 4,475 mm |
| Overall length | 7,025 mm or 7,880 mm |
| Deck length | 5,340 mm (~17.5 ft) or 6,115 mm (~20 ft) |
| Rear overhang | 2,070 mm or 2,295 mm |
| Departure angle | 11° or 12° |
| Front overhang | 1,110 mm |
|---|---|
| Front wheel track | 1,716 mm |
| Rear wheel track | 1,650 mm |
| Cab width | 1,995 mm |
| Rear wheel width | 2,105 mm |
| Height | 2,323 mm |
| Approach angle | 20° |
| Tyres | 215/75 R15.5, rear double tyre |
| Brake type | Air brake |
| Service brake | Front disc, rear drum |
| Parking brake | Electronic park brake |
| Braking energy recovery | Yes |
| Body construction | Reinforced high-strength steel in 13 critical parts, energy absorption |
Cover that matches the duty cycle.
6 years / 300,000 km
Battery warranty.
5 years / 200,000 km
Motor warranty.
5 years / 200,000 km
Vehicle warranty.
JAC N75EV / N90EV — frequently asked questions.
What is the driving range of the JAC N75EV / N90EV?
The JAC N75EV / N90EV has a stated driving range of From 230 km (N75EV at full load). Real-world range varies with load, route profile, ambient temperature and driving style.
How long does the JAC N75EV / N90EV take to charge?
Manufacturer-stated charging time for the JAC N75EV / N90EV is 45 minutes. Actual time depends on charger output, battery state of charge and ambient conditions.
What is the payload capacity of the JAC N75EV / N90EV?
The JAC N75EV / N90EV has a gross vehicle weight of 7,490 kg (N75EV) and 9,000 kg (N90EV).
What warranty is offered on the JAC N75EV / N90EV?
Manufacturer warranty on the JAC N75EV / N90EV: Battery — 6 years / 300,000 km; Motor — 5 years / 200,000 km; Vehicle — 5 years / 200,000 km. Terms are set by the manufacturer and should be confirmed in writing before purchase.
Is the JAC N75EV / N90EV available in Singapore?
The JAC N75EV / N90EV is listed on EVhubs as available to Singapore fleet operators. EVhubs is a supplier-neutral listing platform — we publish specifications, not prices. Contact us for a quotation sized to your route and duty cycle.
