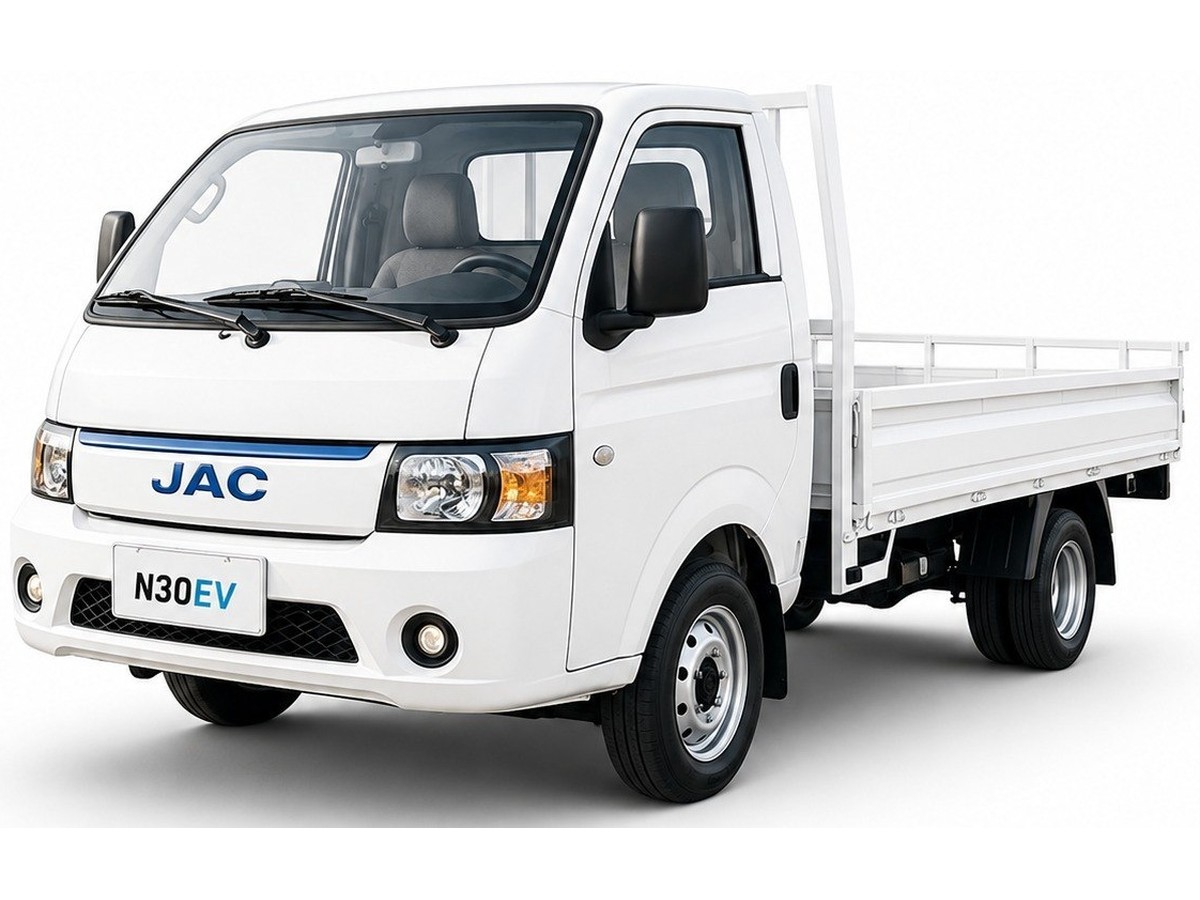

JAC N30EV
3.5-tonne light-duty electric truck — 105 kW / 300 Nm, 63.75 kWh battery, 230 km ECO range and an 11 ft body.
Complete data sheet.
Click any group to expand. All figures from manufacturer's specification; subject to homologation for Singapore LTA Vehicle Type Approval.
| Battery type | Lithium iron phosphate (LFP) |
|---|---|
| Battery total capacity | 63.75 kWh |
| Battery capacity | 200 Ah |
| Battery voltage | 318.78 V |
| Energy consumption | 29.7 kWh / 100 km |
| Charging standard | CCS Combo 2 |
| DC charging 20–80% | 35 minutes |
| AC charging 20–80% | 5 h 30 min |
| Gross vehicle weight | 3,450 kg |
|---|---|
| Body length | 3,347 mm (about 11 ft) |
| Cargo width | 1,719 mm |
| Overall L x W x H | 5,300 x 1,750 x 1,990 mm |
| Wheelbase | 3,100 mm |
| Tyre size | 195/70R15 12PR |
| Electric motor | Permanent magnet synchronous |
|---|---|
| Max net power | 105 kW @ 3,342–12,000 rpm |
| Max net torque | 300 Nm @ 3,342 rpm |
| Rated / max motor speed | 3,342 – 12,000 rpm |
| Max speed | 90 km/h |
| Gradient | 28% |
| Commercial Vehicle Emissions Scheme | Band A |
| Brake type | Hydraulic |
|---|---|
| Brake systems | Front disc, rear drum |
| Driver assistance | ABS, anti-slip regulation, electronic stability control, hill-start assist |
| Energy recovery | Braking energy recovery |
| Seating | 1 driver + 2 passengers |
|---|---|
| Audio | CarPlay audio system |
Cover that matches the duty cycle.
8 years / 400,000 km
Battery warranty.
5 years / 200,000 km
Motor warranty.
5 years / 200,000 km
Vehicle warranty.
JAC N30EV — frequently asked questions.
What battery does the JAC N30EV have?
The JAC N30EV uses a 200 Ah battery pack (Lithium iron phosphate (LFP)).
How long does the JAC N30EV take to charge?
Manufacturer-stated charging time for the JAC N30EV is 35 minutes (battery & charging) and 5 h 30 min (battery & charging). Actual time depends on charger output, battery state of charge and ambient conditions.
What is the payload capacity of the JAC N30EV?
The JAC N30EV has a gross vehicle weight of 3,450 kg.
What warranty is offered on the JAC N30EV?
Manufacturer warranty on the JAC N30EV: Battery — 8 years / 400,000 km; Motor — 5 years / 200,000 km; Vehicle — 5 years / 200,000 km. Terms are set by the manufacturer and should be confirmed in writing before purchase.
Is the JAC N30EV available in Singapore?
The JAC N30EV is listed on EVhubs as available to Singapore fleet operators. EVhubs is a supplier-neutral listing platform — we publish specifications, not prices. Contact us for a quotation sized to your route and duty cycle.
